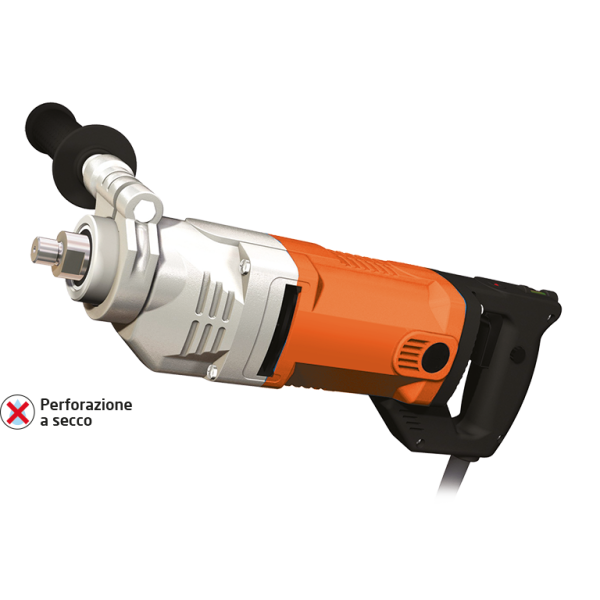

CX 18

Core drilling machine

Excellent for dry drilling of materials such as natural stone, bricks and abrasive building materials.

CX 18 is suitable for dry drilling of brick walls and concrete blocks.
Compact and lightweight, it is ideal for electricians - plumbers. Triple protection against overloads. Interesting price-performance ratio.
The position of the side handle can be changed to make the work as comfortable as possible.
Ideal for manual drilling up to a diameter of 150 mm, with the possibility of drilling up to 200 mm when combined with column - support.
Equipped with a single speed, clutch system for operator safety, and overload protection system.
All CX machines are supplied with transport box for easy handling of the machine.

Technical specifications

CX 18-D1 VERSION WITH M16 CROWN MOUNT

Engine: 1800W

Voltage: 230 V

Speed: 2000 g/1’

Bit connection: M16 - 5/8” - 16 UNF

Maximum diameter of perforation: 150 mm on brik

Perforation in dry/ water: only dry

Weight: 5.3 kg


CX 18-S1 VERSION WITH ½ GAS CROWN MOUNT

Engine: 1800W

Voltage: 230 V

Speed: 2000 g/1’

Bit connection: ½ GAS

Maximum diameter of perforation: 150 mm on brik

Perforation in dry/ water: only dry

Weight: 5.3 kg

Standard Equipment

• transport box

• secondary handle

• m16 mount with centering tip

• service key set

• collar 53 mm
